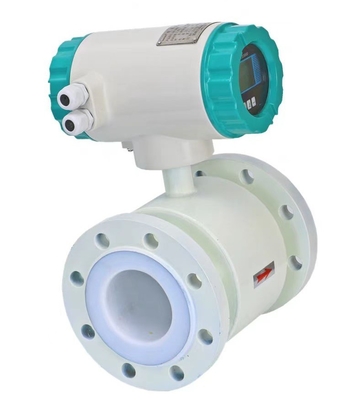

Accurate Control Electromagnetic Flow Meter AC220V HART Output Signal 0.6-4Mpa Pressure DN150
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | ISTLDG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD200-800/ set |
| Packaging Details: | wooden package |
| Delivery Time: | 2-3 word days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per day |
|
Detail Information |
|||
| Caliber: | DN150 | Power Supply: | AC220V，DC24V, 3.6V |
|---|---|---|---|
| Display: | Instantaneous Flow, Total Flow, Flow Velocity | Structure Type: | Integrate Or Remote |
| Pressure: | 0.6Mpa-10Mpa | Accuracy: | ±0.5% Of Reading |
| Fluid Temperature: | -20°C~120°C | Ambient Temperature: | -20℃~60℃ |
| Environment Temperature: | -10℃～+60℃ | Output: | 4-20mA |
| Communication: | RS485 MODBUS RTU, HART, GPRS | Electrode: | SS316L, Hastelloy B, Hastelloy C, Titannium, Tantanlum, Platinum-iridium |
| Flange Standard: | DIN, ANSI, JIS | Protection Level: | IP65, IP67, IP68 |
| Flow Rate Accuracy: | Up To ±1.65% | Protection Grade: | Ip65, It Can Be Customized Up To IP68 |
| Counter: | Forward Total, Reverse Total | Tel: | 18878952222 |
| Ingress Protection: | IP65, IP67, IP68 | Body Material: | Cast Steel ; SS304 ; SS316L |
| Medium: | Conductive Liquid | Sort: | SS304 Magnetic Flowmeter |
| Measuring Medium: | Water And Other Conductive Liquid | Grade: | Industrial |
| Applicable Medium: | Liquid | Lining Material: | PTFE, PFA, FEP, Neoprene, Polyurethane, Hard Rubber, Etc. |
| Reading: | Instant & Total | Power Consumption: | ≤2W |
| Highlight: | DN150 Control Electromagnetic Flow Meter,DN150 Control mag meter flow meter,AC220V Electromagnetic Flow Meter |
||
Product Description
Electromagnetic flowmeters can be used to measure the volume flow of conductive fluids in closed pipelines, and can also be used to measure the volume flow of corrosive liquids such as strong acids and alkalis and uniform liquid-solid mixed liquids such as mud, pulp, and paper pulp. Widely used in petrochemical industry, iron and steel metallurgy, water supply and drainage, water irrigation, water treatment, environmental protection sewage measurement and control, paper making, medicine, food and other industrial and agricultural production process flow measurement and control.
| Diameter | DN150mm |
| Power supply | 220VAC/ 24VDC/3.6V |
| Liner Material | PTFE/PFA/F46/Neoprene/Polyurethane |
| Electrode material | 316L, HB, HC, Ti, Ta, WC, Pt |
| Output signal | Pulse / 4~20mA / RS485 Modbus / HART |
| Pressure | 0.6-4Mpa (high pressure customizable) |
