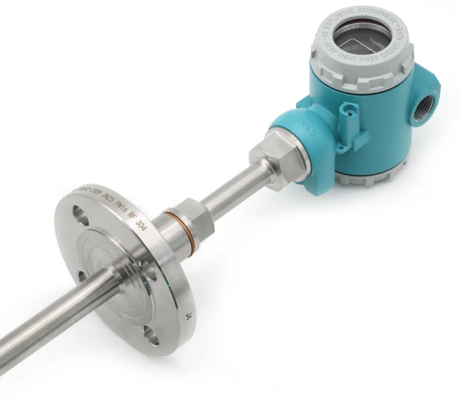

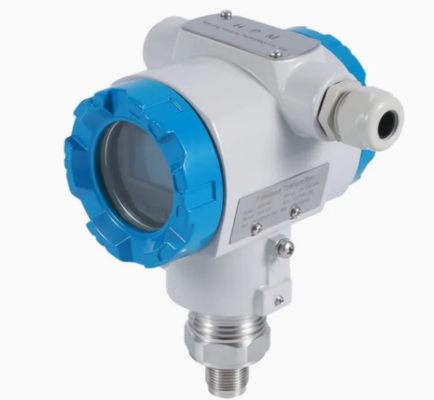

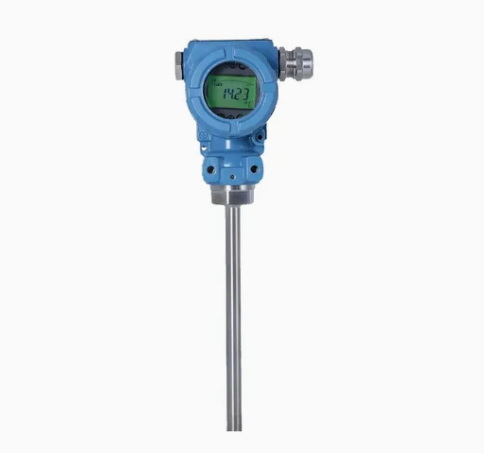

4-20mA High Temp Pressure Transmitter High Precision Thermal Resistant
Product Details:
| Place of Origin: | Jiangsu , China |
| Brand Name: | INSTE |
| Model Number: | IST-300T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 65-300USD |
| Packaging Details: | woodenbox |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T |
| Supply Ability: | 9999 |
|
Detail Information |
|||
| Housing Material: | Aluminum | Pressure Range: | 0-10Mpa |
|---|---|---|---|
| Input Power: | 24vdc | Communication Protocol: | HART |
| Protection Rating: | IP67 | Port: | NINGBO/SHANGHAI |
| Electrical Connection: | M12x1 | Max Current: | 50mA |
| Thread: | 1/4npt | Measurement Range: | 0-1000 Psi |
| Certifications: | CE, RoHS | Wires: | Two-wire & Three-wire |
| Type: | Absolute Pressure | Weight: | 166g |
| Model: | SD-802H | ||
| Highlight: | High Precision High Temp Pressure Transmitter,High Precision pressure transmitter unit,20mA High Temp Pressure Transmitter |
||
Product Description
Technical parameters:
Input signal:
Thermal resistance: Pt100, Cu50, Cu100 (three-wire, four-wire)
Thermocouples: K, E, J, B, S, T, N.
OUTPUT: Output a 4-20mA DC
signal over the range, linear to the input signal of the thermocouple or thermal resistor, or linear to temperature. The intelligent temperature transmitter outputs a 4-20mA DC signal, simultaneously superimposed in line with HART standard protocol communication. The intelligent flow integrator features an isolated temperature transmitter. The input and output are isolated with a voltage of 500V, enhancing the ability to resist common mode interference, making it more suitable for computer networking.
Basic Tolerance: 0.5%FS, 0.2%FS, intelligent 0.2%FS
| Input signal: | hermal resistance: Pt100,Cu50,Cu100(three-wire,four-wire)Thermocouples:K,E,J,B,S,T,N. |
| OUTPUT | 4-20mA DC |
| Basic Tolerance | 0.5%FS, 0.2%FS, intelligent 0.2%FS |
| Wiring mode | two-wire system, three-wire system, four-wire system |
| Display mode | Four-digit LCD displays |
| Operating voltage | 12V-45V, |
| Allowable load resistance | 500Ω (24VDC power supply) |
| Explosive grade | dIICT6Gb |
| Protection grade | IP65 |
